XC 53 S

Self-propelled lawn mower with 166 cc petrol engine and 4-in-1 functionality: collection, mulching, side discharge and rear discharge. 60-litre collector.
  • check STIGA engine with 166 cc
  • check Self-propelled
  • check 51 cm cutting width
  • check 60-litre grass collector
  • check 4-in-1 functionality: collection, mulching, side discharge and rear discharge

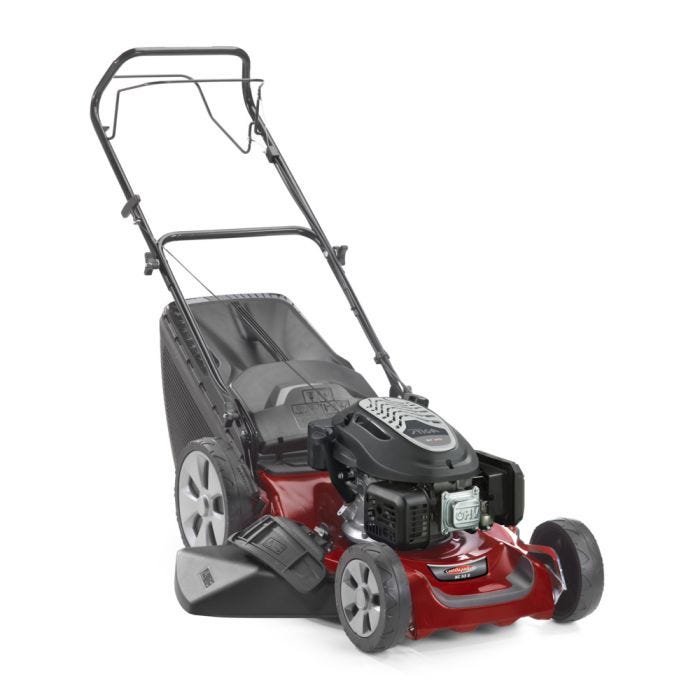

The Castelgarden XC 53 HS self-propelled lawn mower has a reliable 166 cc STIGA engine with a net power output of 2.60 kW @ 2900 rpm, a 51 cm cutting deck and a 60-litre rigid collector. The centralised cutting height can easily be adjusted to 5 settings ranging from 27 to 90 mm with a special ergonomic handle. The lawn mower's efficient 4-in-1 cutting system makes it ideal for collecting grass clippings as well as operating in side discharge, rear discharge or mulching modes. A side deflector and mulching plug are supplied as standard.
More Information
Shop OnlineNo
Short DescriptionSelf-propelled lawn mower with 166 cc petrol engine and 4-in-1 functionality: collection, mulching, side discharge and rear discharge. 60-litre collector.
EAN/UPC8008984851634
Unique selling point 054-in-1 functionality: collection, mulching, side discharge and rear discharge
Unique selling point 02Self-propelled
Unique selling point 0460-litre grass collector
Unique selling point 0351 cm cutting width
Unique selling point 01STIGA engine with 166 cc
Award 3 logono_selection
Award 2 logono_selection
Award 1 logono_selection
Certification CE logono_selection
FAQ 1 questionShould the petrol lawn mower be protected from rain?
FAQ 1 answerAll Castelgarden lawn mowers are IPX4 certified, meaning that they are not damaged by rain. However, it is recommended to keep the lawn mower in a garage or store it indoors. Full information can be found in the instruction manual.
FAQ 2 questionIs this petrol lawnmower already assembled in the box?
FAQ 2 answerThe petrol lawn mower is almost fully assembled when you open the box. The main parts have been put together and the remaining elements are easy to assemble. Follow the directions in the instruction manual to ensure the petrol lawnmower is assembled correctly.
FAQ 3 questionHow should this petrol lawnmower be cleaned after use?
FAQ 3 answerWe recommend cleaning the petrol lawn mower in the normal way after each use. Before washing the petrol mower, we suggest that any residual grass or top soil is removed using the special scraper, which can be purchased separately. <br />Next, the inside of the chassis can be washed with water: connect the hose pipe to the washing link and follow the steps described in the user manual.
FAQ 4 questionWhich fuel and engine oil are recommended for this petrol mower?
FAQ 4 answerYou should use petrol as fuel. In terms of engine oil, we recommend using the specific oil, which can be purchased separately. This will guarantee the best engine performance and optimal lubrication.
FAQ 5 questionWhat happens to this petrol mower if there are small objects in the garden?
FAQ 5 answerWhen the lawn mower is in use, you should look out for any stones, pine cones or other small objects which may be on the lawn. These objects could damage the blade and hit nearby objects or people.
FAQ 6 questionHow should the oil level be measured on this petrol lawn mower?
FAQ 6 answerTo correctly measure the oil level, you need to make sure the petrol lawnmower is on a flat surface, unscrew the cap which has a built-in dipstick for measuring, clean off any oil on the dipstick and reinsert it without screwing it in. Take the dipstick back out and check the level, which must lie between the MIN and MAX values. Top up, if required, and screw the cap back on. Full details can be found in the engine manual.
Power2.6 kW
Power sourcePetrol
Engine BrandSTIGA
Engine modelST 170 OHV Autochoke Powered by STIGA
Displacement166 cm³
Engine rotation speed2900 rpm
RPM controlFixed rpm
StarterRecoil
Fuel tank capacity1 l
Engine Oil tank capacity0.55 l
Maximum working area1800.000000
Cutting methodCollecting, Mulching, Side discharge, Rear discharge
4 in 1 cutting systemYes
Mulching functionYes
Cutting width51 cm
Deck materialSteel
Cutting height adjustmentCentralized
Cutting height positions6 positions
Cutting height range22 - 80 mm
TractionRear-wheel drive
DrivingSelf-propelled
Speed forward3.7 Km/h
Collector capacity60 l
Handlebar typeErgonomic
Wheels200/280mm grooved wheels on ball bearings with soft tread
Adjustable handlebarYes
Foldable handlebarYes
Washing linkYes
Collector typePlastic
Measured sound pressure level at operator ear dB(A)83
Vibration level hand (m/s2)5.9
Measured sound power level dB(A)98
Guaranteed sound power level (LwA) - dB(A)98
Pack weight37.5 kg
Product weight34.000000
What's in the boxGrass bag<br />Mulching plug<br />Side deflector <br />Pin for rear discharge
SKU2L0536843/C22
Write Your Own Review
You're reviewing:XC 53 S

Key features

Product details and specs

The Castelgarden XC 53 HS self-propelled lawn mower has a reliable 166 cc STIGA engine with a net power output of 2.60 kW @ 2900 rpm, a 51 cm cutting deck and a 60-litre rigid collector. The centralised cutting height can easily be adjusted to 5 settings ranging from 27 to 90 mm with a special ergonomic handle. The lawn mower's efficient 4-in-1 cutting system makes it ideal for collecting grass clippings as well as operating in side discharge, rear discharge or mulching modes. A side deflector and mulching plug are supplied as standard.

Technical specs

General info
EAN/UPC8008984851634
SKU2L0536843/C22
Cutting system
Cutting methodCollecting, Mulching, Side discharge, Rear discharge
4 in 1 cutting systemYes
Mulching functionYes
Cutting width51 cm
Deck materialSteel
Cutting height adjustmentCentralized
Cutting height positions6 positions
Cutting height range22 - 80 mm
Equipment
Collector capacity60 l
Handlebar typeErgonomic
Wheels200/280mm grooved wheels on ball bearings with soft tread
Adjustable handlebarYes
Foldable handlebarYes
Washing linkYes
Collector typePlastic
Overall dimensions
Pack weight37.5 kg
Product weight34 kg
Power
Power2.6 kW
Power sourcePetrol
Engine BrandSTIGA
Engine modelST 170 OHV Autochoke Powered by STIGA
Displacement166 cm³
Engine rotation speed2900 rpm
RPM controlFixed rpm
StarterRecoil
Fuel tank capacity1 l
Engine Oil tank capacity0.55 l
Maximum working area1800 ㎡
Drive system
TractionRear-wheel drive
DrivingSelf-propelled
Speed forward3.7 Km/h
Vibration and noise data
Measured sound pressure level at operator ear dB(A)83
Vibration level hand (m/s2)5.9
Measured sound power level dB(A)98
Guaranteed sound power level (LwA) - dB(A)98

What's in the box

What's in the box

  • Grass bag

  • Mulching plug

  • Side deflector

  • Pin for rear discharge

Support

Support

  • Should the petrol lawn mower be protected from rain?

    All Castelgarden lawn mowers are IPX4 certified, meaning that they are not damaged by rain. However, it is recommended to keep the lawn mower in a garage or store it indoors. Full information can be found in the instruction manual.

    How should this petrol lawnmower be cleaned after use?

    We recommend cleaning the petrol lawn mower in the normal way after each use. Before washing the petrol mower, we suggest that any residual grass or top soil is removed using the special scraper, which can be purchased separately.
    Next, the inside of the chassis can be washed with water: connect the hose pipe to the washing link and follow the steps described in the user manual.

    What happens to this petrol mower if there are small objects in the garden?

    When the lawn mower is in use, you should look out for any stones, pine cones or other small objects which may be on the lawn. These objects could damage the blade and hit nearby objects or people.

    Is this petrol lawnmower already assembled in the box?

    The petrol lawn mower is almost fully assembled when you open the box. The main parts have been put together and the remaining elements are easy to assemble. Follow the directions in the instruction manual to ensure the petrol lawnmower is assembled correctly.

    Which fuel and engine oil are recommended for this petrol mower?

    You should use petrol as fuel. In terms of engine oil, we recommend using the specific oil, which can be purchased separately. This will guarantee the best engine performance and optimal lubrication.

    How should the oil level be measured on this petrol lawn mower?

    To correctly measure the oil level, you need to make sure the petrol lawnmower is on a flat surface, unscrew the cap which has a built-in dipstick for measuring, clean off any oil on the dipstick and reinsert it without screwing it in. Take the dipstick back out and check the level, which must lie between the MIN and MAX values. Top up, if required, and screw the cap back on. Full details can be found in the engine manual.
